SSOP8 TSSOP8 to DIL8 Adapter for EEPROM – SMD Converter

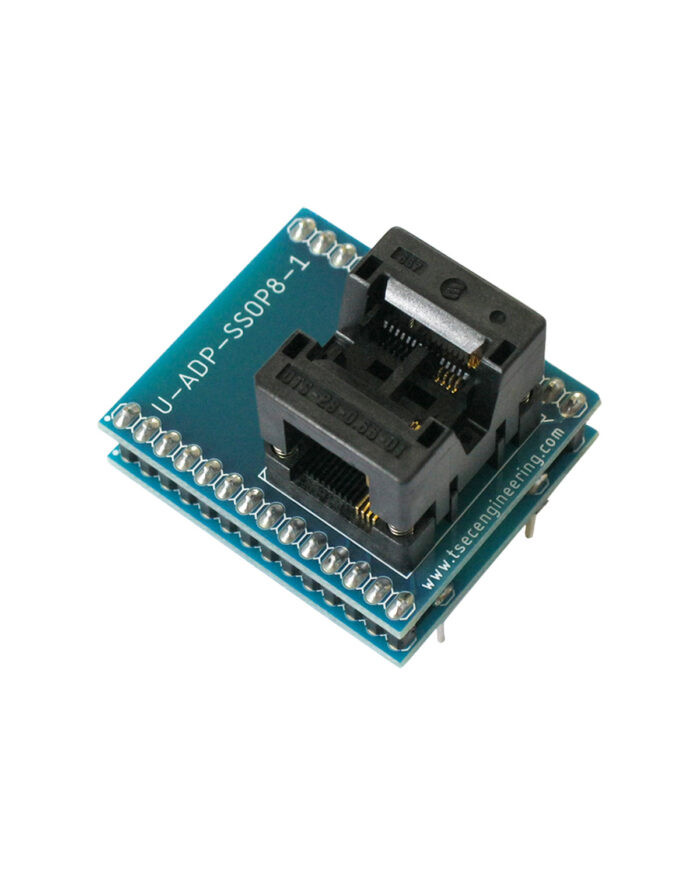

SSOP8/TSSOP8 TO DIL8 ADAPTER FOR EEPROMs

The SSOP8/TSSOP8 to DIL8 adapter is an essential tool for programming SMD EEPROMs using compatible programmers.

This adapter allows SSOP8 and TSSOP8 package devices to be converted to DIL8 format, enabling simple and direct use without complex wiring.

COMPATIBILITY AND USE

The SSOP8/TSSOP8 to DIL8 adapter allows SMD devices to be programmed using programmers equipped with DIL8 sockets.

Compatible with:

• UPA-S USB Programmer
• Universal EEPROM programmers

Compatible with UPA-S USB Programmer.

TYPICAL APPLICATIONS

The SSOP8 TSSOP8 to DIL8 adapter is ideal for:

• EEPROM programming
• ECU repair operations
• Instrument cluster operations
• Immobilizer system operations
• Airbag module operations

USING THE ADAPTER

Operation is simple:

• Insert the SSOP8 or TSSOP8 device into the adapter
• Position the adapter in the DIL8 socket
• Start reading or writing via software

This allows you to work on the bench quickly and safely.

WHY USE AN SSOP8/TSSOP8 TO DIL8 ADAPTER

Many modern EEPROMs use compact packages such as SSOP8 and TSSOP8, which are not directly compatible with standard programmers.

Using an SSOP8/TSSOP8 to DIL8 adapter simplifies programming operations, reduces the risk of errors and improves bench work efficiency.

KEY ADVANTAGES

• SMD to DIL conversion
• Compatibility with various programmers
• Simple and immediate use
• No wiring required
• Ideal for professional use

TECHNICAL NOTES

Compatibility depends on the device and programmer used.

Always check that the component is correctly positioned.
