UPA-S SPI/I2C Adapter – EEPROM Reading and Writing for 24Cxxx, 25xxx and 95xxx

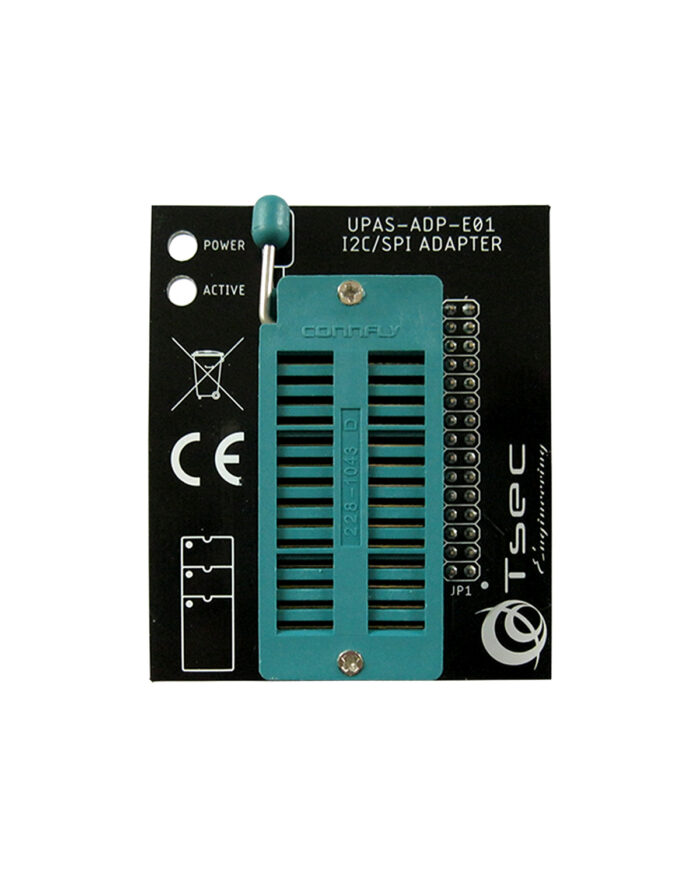

UPA-S SPI I2C ADAPTER FOR EEPROM MEMORIES

The UPA-S SPI/I2C adapter is designed to simplify reading and writing EEPROM memories used in electronics and automotive applications.

This adapter enables quick connection of EEPROM memories to the UPA-S programmer, simplifying programming operations and reducing the risk of errors during bench work.

Thanks to its compact design and intuitive use, it is an essential accessory for professionals using the UPA-S programmer.

SUPPORTED EEPROM COMPATIBILITY

The UPA-S SPI/I2C adapter supports the main EEPROM families:

• 24Cxxx series (I2C)
• 25xxx / 95xxx Series (SPI)

These memories are commonly used in various electronic systems, including:

• ECUs
• Instrument clusters
• Immobilizer modules
• Airbag control units

USING THE UPA-S ADAPTER

Using the adapter is simple and quick, even for repetitive bench operations.

Operating procedure:

• Insert the memory into the DIL converter
• Place the adapter in the upper socket strip of the UPA-S programmer
• Start the reading or writing operation via the software

This method enables direct and secure access to EEPROM memories, improving efficiency in diagnostic and repair operations.

PROFESSIONAL APPLICATIONS

The UPA-S SPI / I2C adapter is ideal for:

• EEPROM programming
• Automotive ECU repair
• Bench electronic diagnostics
• Electronic module maintenance

Compatible with UPA-S USB Programmer.

KEY ADVANTAGES

• Quick connection to EEPROM memories
• Reduced connection errors
• Compatibility with common EEPROMs
• Simple and immediate use
• Ideal for professional use

TECHNICAL NOTES

Compatibility may vary depending on the memory type and circuit configuration.

We always recommend checking compatibility before use.
