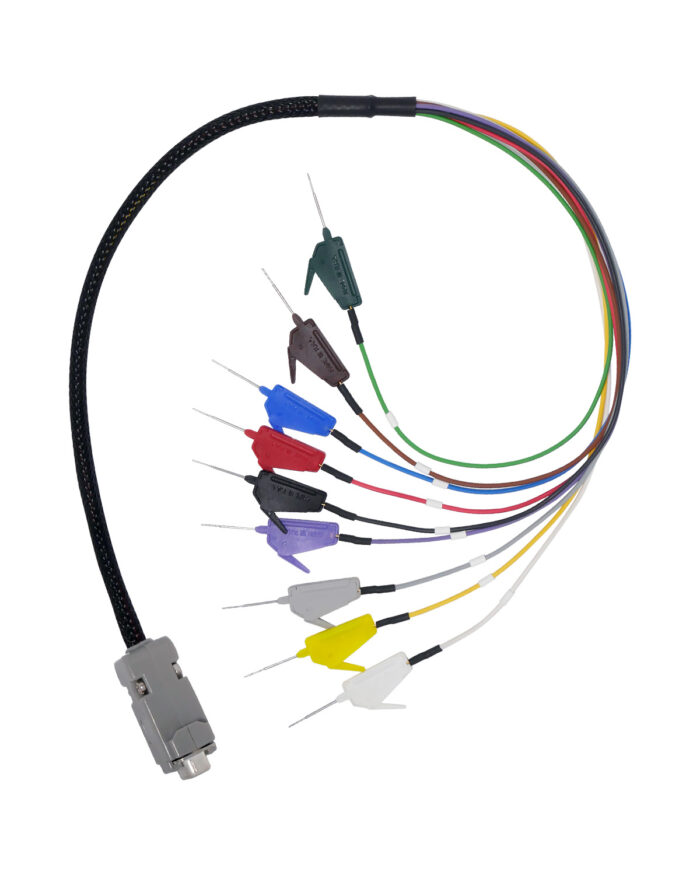

UPA-S Cable with E-Z-Hook X2015 Micro Clips – AWG20 Silicone Wires

UPA-S EZ-HOOK X2015 CABLE FOR MICROCONTROLLER PINS

The UPA-S E-Z-Hook X2015 cable is designed for programming operations that require direct connection to microcontroller pins.

Unlike clips used on PCB test points, this cable allows precise attachment directly to component pins, making operations on SMD devices easier.

DIRECT CONNECTION TO MICROCONTROLLER PINS

The UPA-S EZ-Hook X2015 cable is ideal when test points are unavailable or when working directly on the microcontroller is necessary.

KEY ADVANTAGES

• Direct connection to component pins
• Greater precision
• Access even on complex PCBs
• No soldering required

Ideal solution for advanced bench operations.

ULTRA-FLEXIBLE AWG20 SILICONE WIRES

The cable uses AWG20 silicone-insulated wires, designed to withstand intensive use.

FEATURES

• High flexibility
• Heat resistance
• Long durability
• Excellent handling and flexibility

Perfect for laboratory and workshop use.

NUMBERED WIRES FOR QUICK CONFIGURATION

Each wire of the UPA-S EZ-Hook X2015 cable is numbered to facilitate connections.

This enables:

• Immediate signal identification
• Faster setup
• Reduced errors on complex ECUs

PROFESSIONAL APPLICATIONS

The UPA-S cable with X2015 micro clips is ideal for:

• Microcontroller programming
• Automotive ECU repair
• Bench electronic diagnostics
• Work on SMD components

Compatible with UPA-S USB Programmer.

DIFFERENCE FROM STANDARD CLIPS

This cable is designed for specific uses:

• XM-S Clips → PCB test points
• X2015 Clips → direct microcontroller pins

Choosing the correct cable is essential.

KEY ADVANTAGES

• Direct connection to MCU pins
• Precise and reliable micro clips
• Ultra-flexible AWG20 silicone wires
• No soldering required
• Ideal for professional use

TECHNICAL NOTES

It is important to ensure that the contact on the pins is stable to avoid errors during programming.

Always use with care when working on SMD components.
